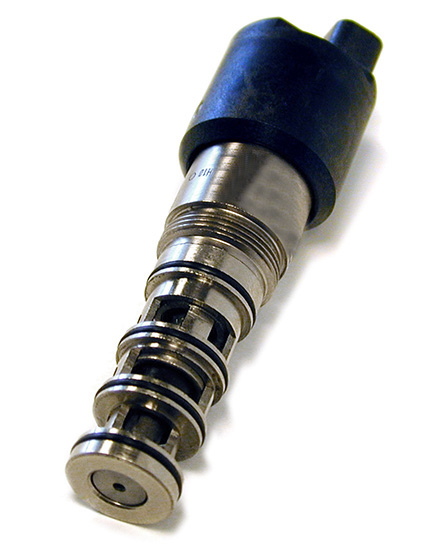

BV14
14mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
The BV14 represents yet another evolution in air valve technology from MAC. The Bullet Valve® utilizes “lifting” solenoid technology. The MAC “lifting” configuration is unique, however, in that the valve maintains a balanced design – a signature feature of a MAC valve – shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV14 cartridge are available.
Application, Installation and Service Precautions
Cv (Max): Up to 0.24 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve® Catalog
Category: Products


Quickview
3-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 3 Way
Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valvesSmall 3 Way Valves
Air flows up to 1.2 CvLarge 3 Way Valves
Air flows from 1.5 Cv and higher

Quickview
4-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 4 Way
Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.Small 4 Way Valves
Air flows up to 1.2 CvLarge 4 Way Valves
Air flows from 1.2 Cv and higher

Quickview
LIQUID VALVES
ProductsThe MAC Advantage™ Features:
- 2-way, 3-way, variable flow, filling and dosing valves
- Wetted and non-wetted (media-separated) solenoids
- Accurate and repeatable dosing
- Dual-diaphragm D-Flex™ Technology
- Reliable operation in extreme environments


Quickview

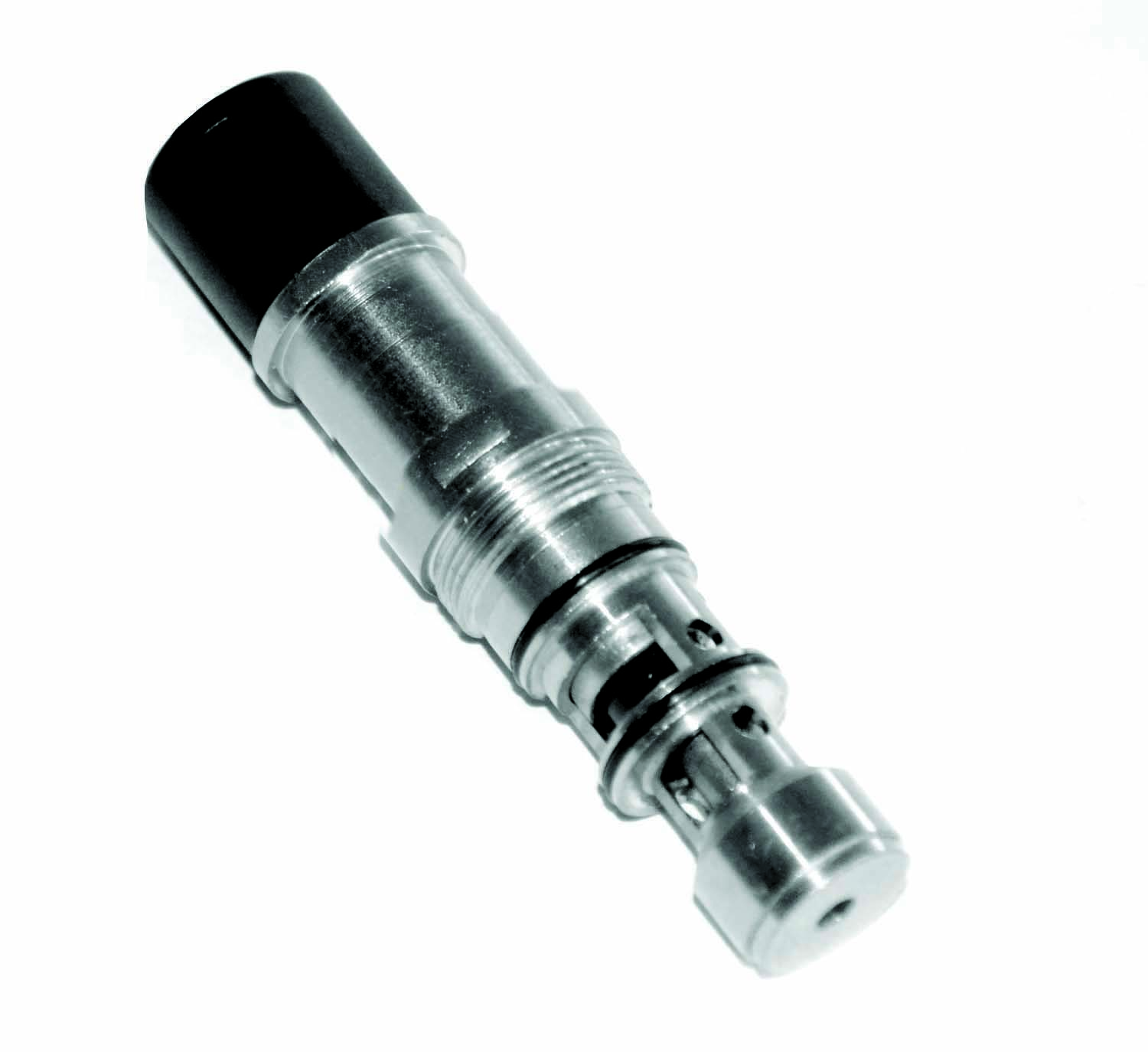

BV10
