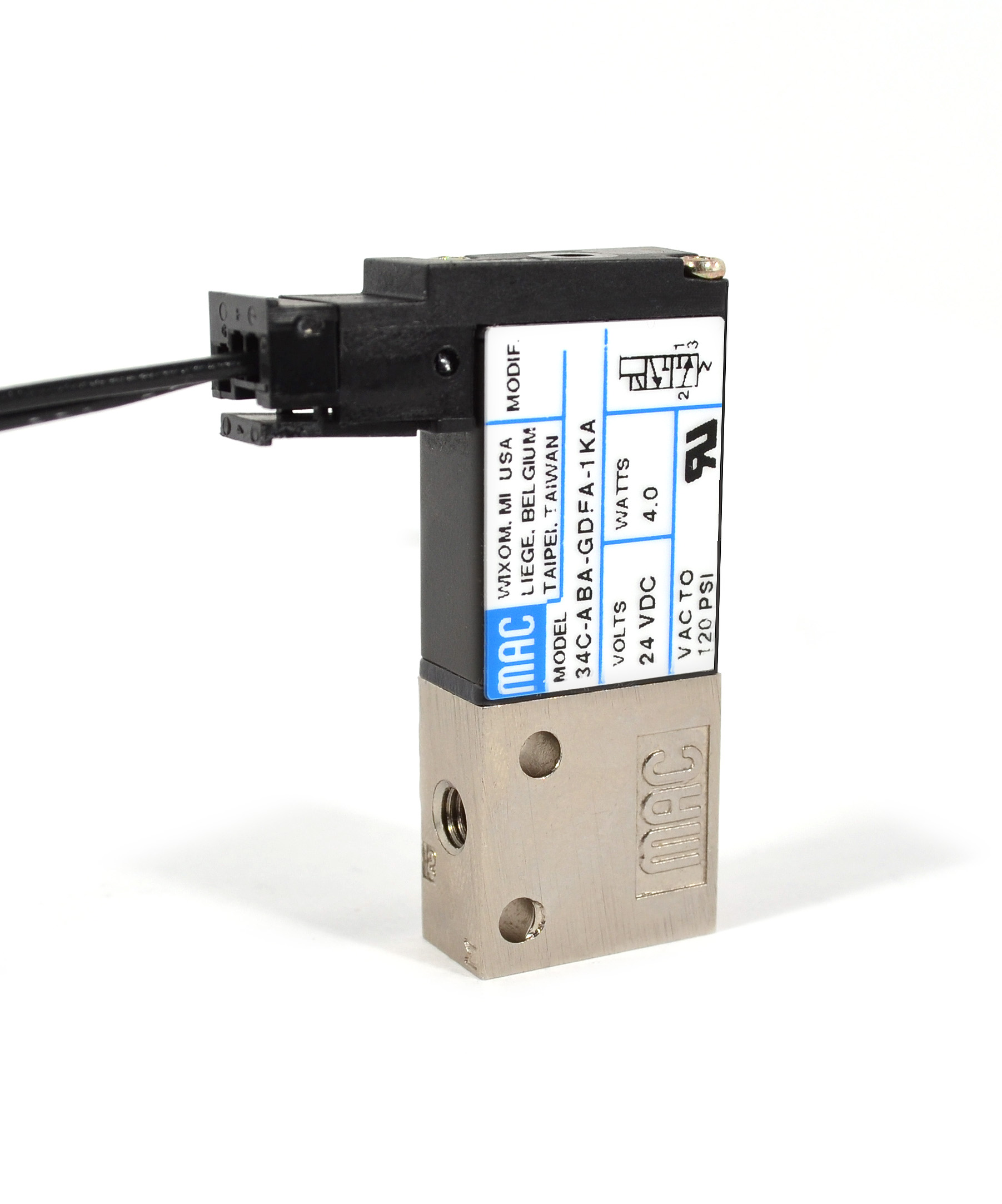

The Mac 34 series is a direct solenoid operated 3-way – 10mm – poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
The MAC 200 Series is a direct solenoid operated 3-way poppet valve. This unique series is also available for Hazardous Location applications (Class I/Div B,C, & D - Class II/Div E,F, & G). It also features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.50
Port Sizes: 1/8"-1/4"
Configurations: Inline - Hazardous Location - Manifold: Non Plug-in
The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.4
Port Sizes: 1/8"-1/4"
Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in
The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our patented Bullet™ technology. Bullet™ technology is a unique hybrid technology that utilizes a “Lifting” solenoid (denoted by the “L” in 35L) with an integrated armature/balanced poppet. The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid. Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means more consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
