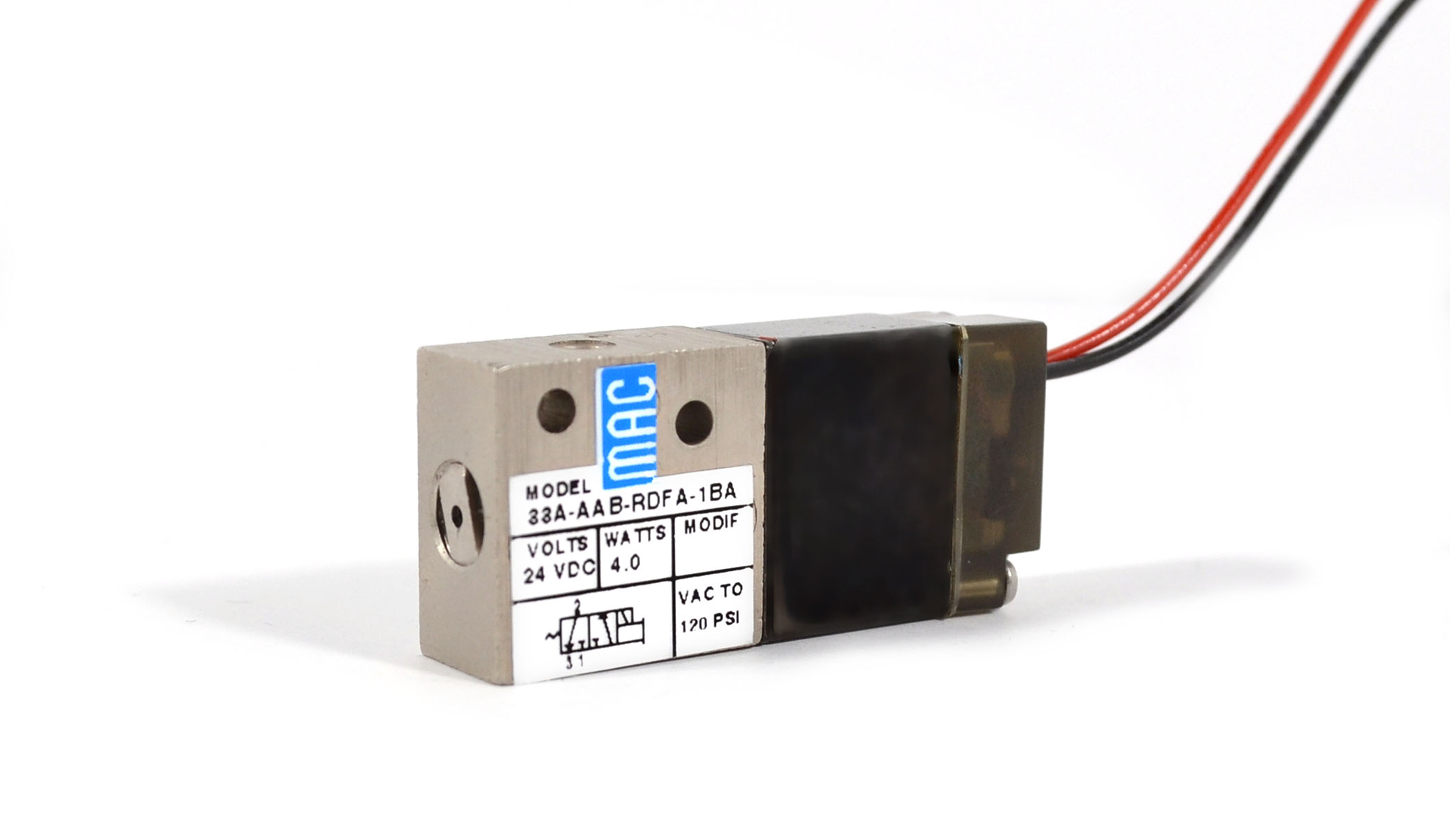

33 Series

The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.4

Port Sizes: 1/8"-1/4"

Configurations:  Individual Sub Base/Manifold:  Plug-in/Non Plug-in

32 Series Catalog Pages

32 Series Circuit Bar Pages

32 Series Regulator Pages

32 Series MAConnect Pages

The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our patented Bullet™ technology. Bullet™ technology is a unique hybrid technology that utilizes a “Lifting” solenoid (denoted by the “L” in 35L) with an integrated armature/balanced poppet. The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid. Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means more consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations. Application, Installation and Service Precautions

Cv (Max):  0.17

Port Size:  1/8"

Configurations:  Inline - Stacking - Sub Base/Manifold:  Non Plug-in

35L Series Catalog Pages

The MAC 35 series is a direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, and long life.  Our unique balanced design means versatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter or selector applications.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.17

Port Size:  1/8"

Configurations:  Inline - Stacking - Sub Base/Manifold:  Non Plug-in

35 Series Catalog Pages

35 Series Circuit Bar Pages

35 Series Regulator Pages

35 Series Remote Air Pages

35 Series Intrinsically Safe Pages

The Mac 34 series is a direct solenoid operated 3-way - 10mm - poppet valve.  A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations.  It features an oval armature in the solenoid, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.12

Port Sizes:  M5-10-32

Configurations:  Manifold:  Plug-in/Non Plug-in

34 Series Catalog Pages

34 Series Circuit Bar Pages

34 Series Regulator Pages

The MAC 36L Series is a direct solenoid operated 3-way poppet valve featuring our patented Bullet™ technology. Bullet™ technology is a unique hybrid technology that utilizes a “Lifting” solenoid (denoted by the “L” in 36L) with an integrated armature/balanced poppet. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader.   For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.30

Port Size:  #10-32, 1/8", M5

Configurations:  Inline - Manifold: Plug-in/Non Plug-in

36L Series Catalog Pages
