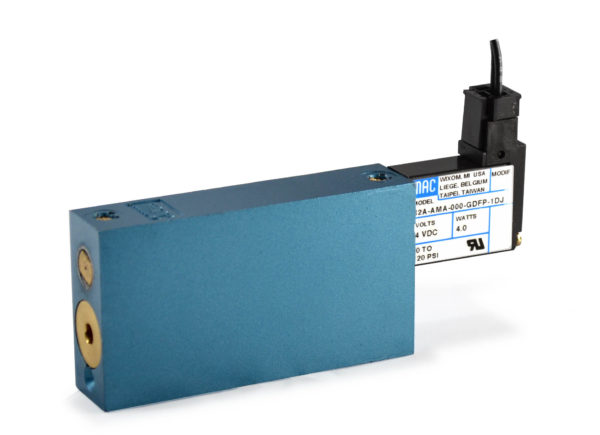

32 Series

The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions

Cv (Max): 0.4

Port Sizes: 1/8″-1/4″

Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in

32 Series Catalog Pages

32 Series Circuit Bar Pages

32 Series Regulator Pages

32 Series MAConnect Pages

Category: Small 3-Way Valves
